Stainless Steel SS304 SS316L Single Screw Mono Pump Sanitary Positive Displacement Pump

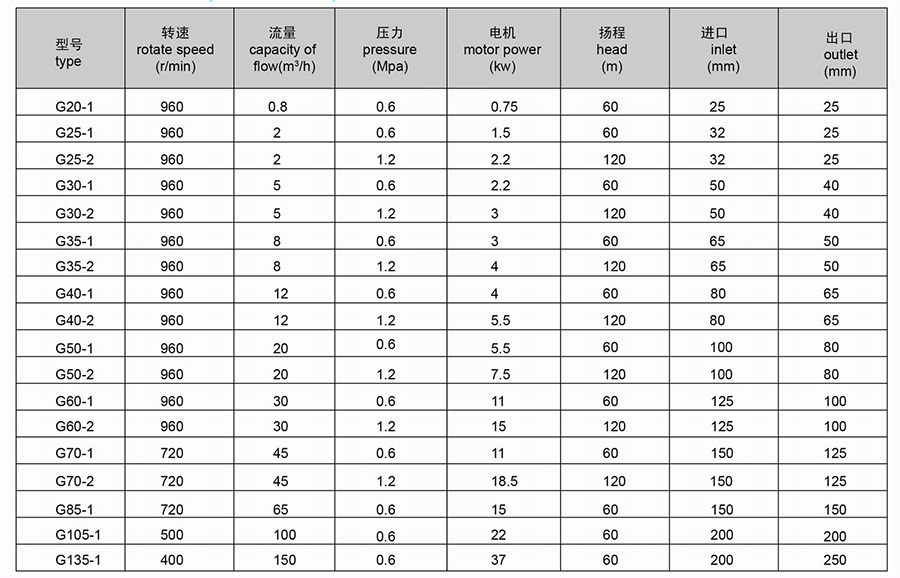

Model: FGS35-1
Pump inlet diameter: 65 mm
Pump outlet diameter: 50 mm
Flow rate: 8 m³/h
Head: 60 m
Power: 3 KW
Material: SS304/SS316

We can provide pump selection for free.

Single screw pump is used in all fields widely to feed kinds of medium, running at a constant pressure continuously, without pulse and damage when feeding medium, and change the gauging aim through adjusting rotation speed.

Feeding Medium

● High solid content (diameter of the biggest particle is 50mm) or no solid content

● Medium with all viscosities (1mPas~3,000,000mPas)

● Medium that is easy to be generated and swelled

● Shearing sensitive medium

● Medium with erosion

● Medium with/without self lubrication

● Erosive medium (PH=0-14)

● Adhesive medium

● Toxicity hazard medium
